Page 72 - Catalog_W_Lamp

70

MeTAL HALIDe LAMPS (for uSe In encLoSeD fIxTureS)

MeTAL HALIDe ProTecTeD LAMPS (oPen fIxTure rATeD)

Watts

Lamp Base

Order

No. Domestic Code

Master Pack

Pack Type Finish

Avg. Rated Hours

Initial Lumens

Mean

Lumens Kelvin CRI ANSI MOL MOD ED17

50 Medium 37016* MH50/U/M110/E/MED 6 Box Clear 10000 3400 2000 4200 65 M110/E 5 7/16" 2 1" 70 Medium 37017* MH70/U/M98/E/MED 6 Box Clear 10000 5600 4400 4200 65 M98/E 5 7/16" 2 1" 100 Medium 37018* MH100/U/M90/E/MED 6 Box Clear 10000 8500 5525 4200 65 M90/E 5 7/16" 2 1" 150 Medium 37015* MH150/U/M102/E/MED 6 Box Clear 10000 9000 8000 4200 60 M102/E 5 7/16" 2 1" 175 Medium 37019 MH175/U/M57/E/MED 6 Box Clear 10000 14400 11520 4200 65 M57/E 5 7/16" 2 1" ED28

175 Mogul 37020 MH175/U/M57/E 6 Box Clear 10000 14400 12800 4200 65 M57/E 8 5/16" 3 5" 250 Mogul 37021 MH250/U/M58/E 6 Box Clear 10000 20500 17500 4200 65 M58/E 8 5/16" 3 5" 400 Mogul 37014 MH400/U/M59/ED28/E

Low Profle

6 Box Clear 20000 36000 23500 4000 60 M59/E 8 5/16" 3 5"

ED37

400 Mogul 37024 MH400/U/M59/E 6 Box Clear 20000 36000 23500 4200 65 M59/E 11 1" 4 3"

Mogul 37026 MH400/C/U/M59/E 6 Box Coated 20000 36000 23500 3800 70 M59/E 11 1" 4 3" BT37

1000 Mogul 37028 MH1000/U/M47/E/BT37

Low Profle

6 Box Clear 10000 110000 86000 4200 65 M47/E 11 1" 4 3"

BT56

1000 Mogul 37027 MH1000/U/M47/E 6 Box Clear 10000 105000 80000 4200 65 M47/E 15 1" 7 ⅛"

Watts

Lamp Base

Order

No. Domestic Code

Master Pack

Pack Type Finish

Avg. Rated Hours

Initial Lumens

Mean

Lumens Kelvin CRI ANSI MOL MOD ED17

50 Medium 37009* MP50/U/M110/O/MED 6 Box Clear 10000 3450 1900 3000 60 M110/O 5 7/16" 2 1" 70 Medium 37010* MP70/U/M98/O/MED 6 Box Clear 10000 5600 4480 3000 60 M98/O 5 7/16" 2 1" 100 Medium 37011* MP100/U/M90/O/MED 6 Box Clear 10000 8000 5525 3000 60 M90/O 5 7/16" 2 1" 150 Medium 37013* MP150/U/M102/O/MED 6 Box Clear 10000 12250 8500 4200 60 M102/O 5 7/16" 2 1" BT28

175 Ext. Mogul 37029 MP175/U/M57/O 6 Box Clear 10000 14,400 10800 4200 65 M57/O 8 1" 3 5" 250 Ext. Mogul 37023 MP250/BU/M58/O 6 Box Clear 10000 20500 17500 4200 65 M58/O 8 1" 3 5" 400 Ext. Mogul 37022 MP400/BU/M59/O 12 Box Clear 20000 36000 23500 4200 65 M59/O 11 1" 4 3"

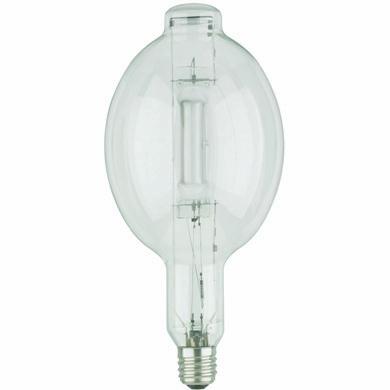

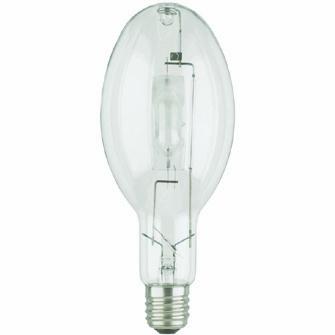

eD17 eD28 eD37 BT37 BT56 eD17

ProTecTeD

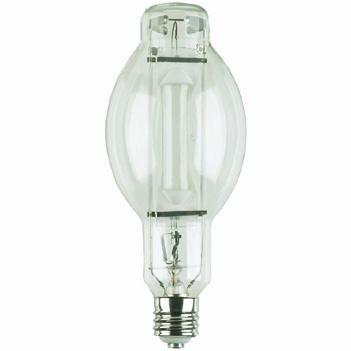

BT28 ProTecTeD

* For Probe Start or Pulse Start Ballasts
