121
Meets or exceeds UL standards regarding exposed threads within box. Meets or exceeds NEC® safety codes.
01010
Saf-T-Brace®
Box Depth 1
½
"

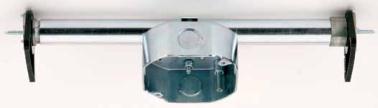

Heavy Duty, 15.5 Cubic Inch Dual Mount Electrical Box
Individually Packaged, 24 Per Cut Case
Saf-T-Brace®
Four teeth and
single screw
on each end
8-32 threads for
cover plates and lightweight
lighting fixtures
10-24 threads for ceiling fans
and chandeliers
Each end screws
into joist independently
For Remodel or New Construction Applications
• Fits 16" to 24" ceiling joists
• Patented design provides fast fingertip expansion and
positive attachment to joists
• Fits all ceiling fans
• Installs without attic access in four easy steps
• For fixture support of 150 lbs. or less on 16" centers
• For fixture support of 50 lbs. or less on 24" centers
• Acceptable for fan support of 70 lbs. or less
PATENTED
TECHNOLOGY
US PATENT NO.
4,909,405
306,254
5,860,548
85E6
Saf-T-Cap® to protect
bolts and wires during painting
and sheetrock installation
Mounting hardware
and wire bushing
Includes Mounting Hardware & Instructions
Step 1
Easy installation from
below ceiling through any 4"
diameter hole.
Step 2
Install end “A” by turning unit
clockwise and applying pressure
toward the ceiling joist.
A
Step 3
Slide unit toward other
joist and again apply
clockwise pressure.
Step 4
Attach electrical box and install
fan or lighting fixture per
manufacturer’s instructions.
