122
Meets or exceeds UL standards regarding exposed threads within box. Meets or exceeds NEC® safety codes.
Saf-T-Brace®
01100
Saf-T-Brace®
Box Depth 1
½
"

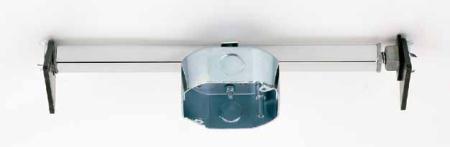

Heavy Duty, 15.5 Cubic Inch Dual Mount Electrical Box
Individually Packaged, 24 Per Cut Case
Square tube for easy turning
Individually Packaged, 24 Per Cut Case
Square tube for easy turning
Threaded multiple lead
installs fast
Teeth twist and
lock into joist
10-24 threads for ceiling fans
and chandeliers
8-32 threads for cover plates and
lightweight lighting fixtures
85E6
PATENTED
TECHNOLOGY
US PATENT NO.
5,720,461
5,860,548
For Remodel or New Construction Applications
• Fits 16" to 24" ceiling joists
• Patented design provides fast fingertip expansion
and positive attachment to joists
• Fits all ceiling fans
• Installs without attic access in three easy steps
• For fixture support of 150 lbs. or less on 16" centers
• For fixture support of 50 lbs. or less on 24" centers
• Acceptable for fan support of 70 lbs. or less
Step 1
Easy installation from
below ceiling through any 4"
diameter hole.
Step 2
Rotate bar until teeth are fully
embedded into joist.
Step 3
Attach electrical box and install
fan or lighting fixture per
manufacturer’s instructions.
Saf-T-Cap® to protect
bolts and wires during painting
and sheetrock installation
Mounting hardware
and wire bushing
Includes Mounting Hardware & Instructions
